This full weld-in repair panel covers the lower rear fender area on the passenger side, behind the rear wheel and below the bumper. It measures approximately 8" tall at the wheel well, and approximately 6" tall at the rear corner. It then extends around the rear corner approximately 4" into the rear panel. The front portion of this piece is duplicated on the Outer Wheel Arch, if you are using both, one will need to be modified.
As with all repair panels, they are designed to be modified to only replace the portion that is needed. This panel can be used in its entirety on a late 260Z or 280Z. On a 240Z or early 260Z, the top area would need trimming as it does not include the indentation for the bumper area found on these vehicles. Please let us know if you have any questions.

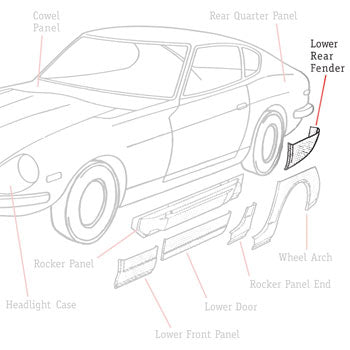

Image shows Left side panel, this part is the corresponding panel on the Right side (U.S. Passenger side) of the vehicle.
